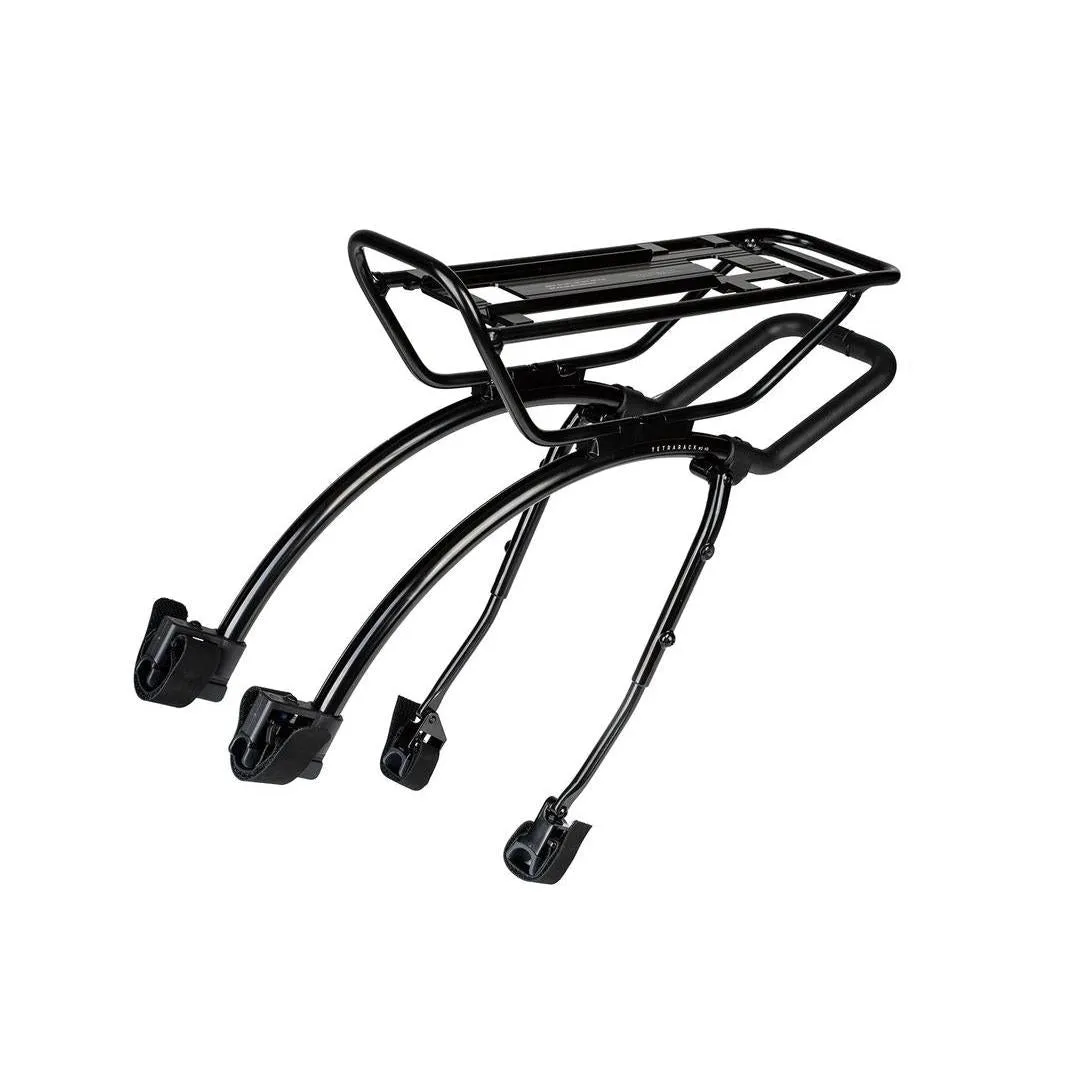

The perfect quick-mount rear rack system attaches to MTB full suspension seatstays or hardtail MTB. The next-generation rack design allows for a 66% increase in carrying capacity, with a maximum load of 22kg, to meet the needs of cyclists carrying more equipment during their travels.

NOTE :

*TetraRack is not recommended for carbon forks and seat stays
*TetraRack series racks are not compatible with front or rear mounted V-Brake type systems.

*KLICKfix. is a registered trademark of RIXEN & KAUL GmbH.
*Racktime. is a registered trademark of Tubus Carrier Systems GmbH.

ATTACHMENTS    Seatstays with hook and loop straps
MATERIAL    Aluminum / Engineering grade polymer / Nylon straps
ADJUSTMENT    Strut slots

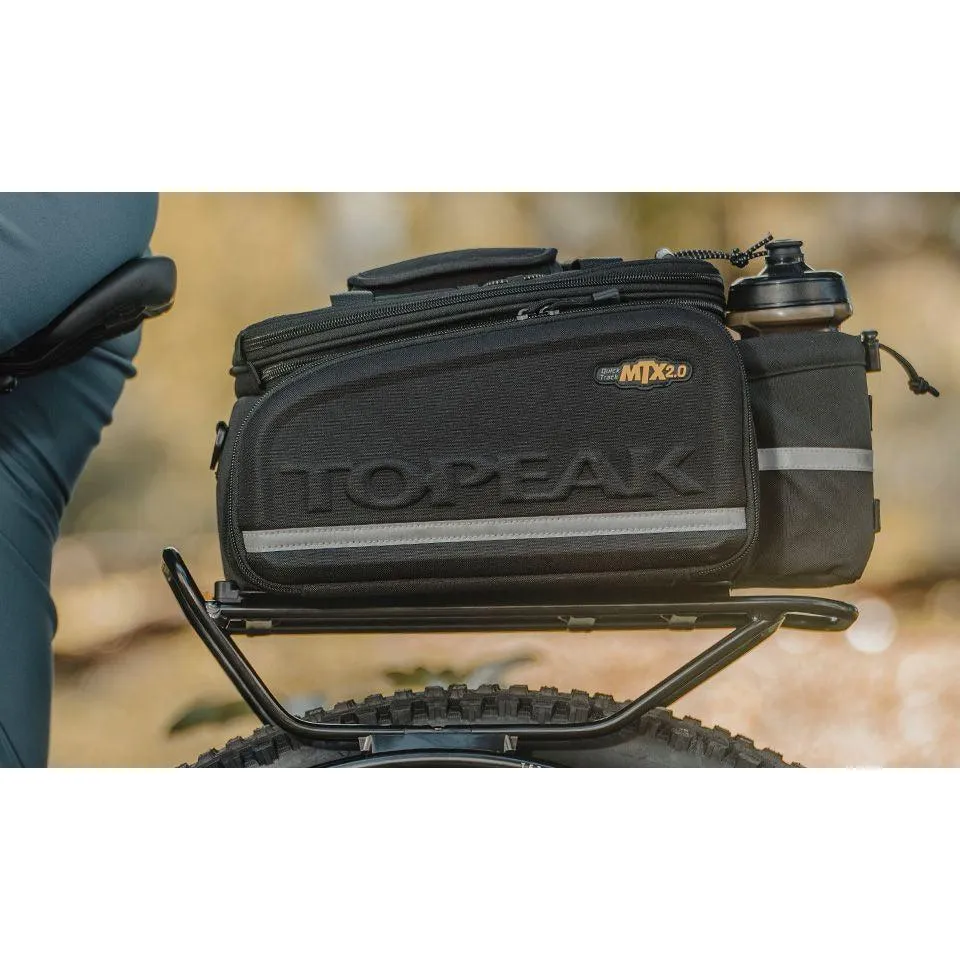

COMPATIBILITY    Topeak MTX TrunkBags & Baskets.
KLICKfix® / RackTime® Snapit 1.0 or Vario system bags
TETRARACK FENDER M2 / TETRARACK SIDE FRAME
MAX LOAD    22 kg / 48.5 lb
SIZE    47.5 x 38.5 x 13.5 cm / 18.7" x 15.1" x 5.3"
WEIGHT    1.25 kg / 2.75 lb
ADDED FEATURE    Clamp for rear reflector, Tail light mount, Dropout eyelet mount

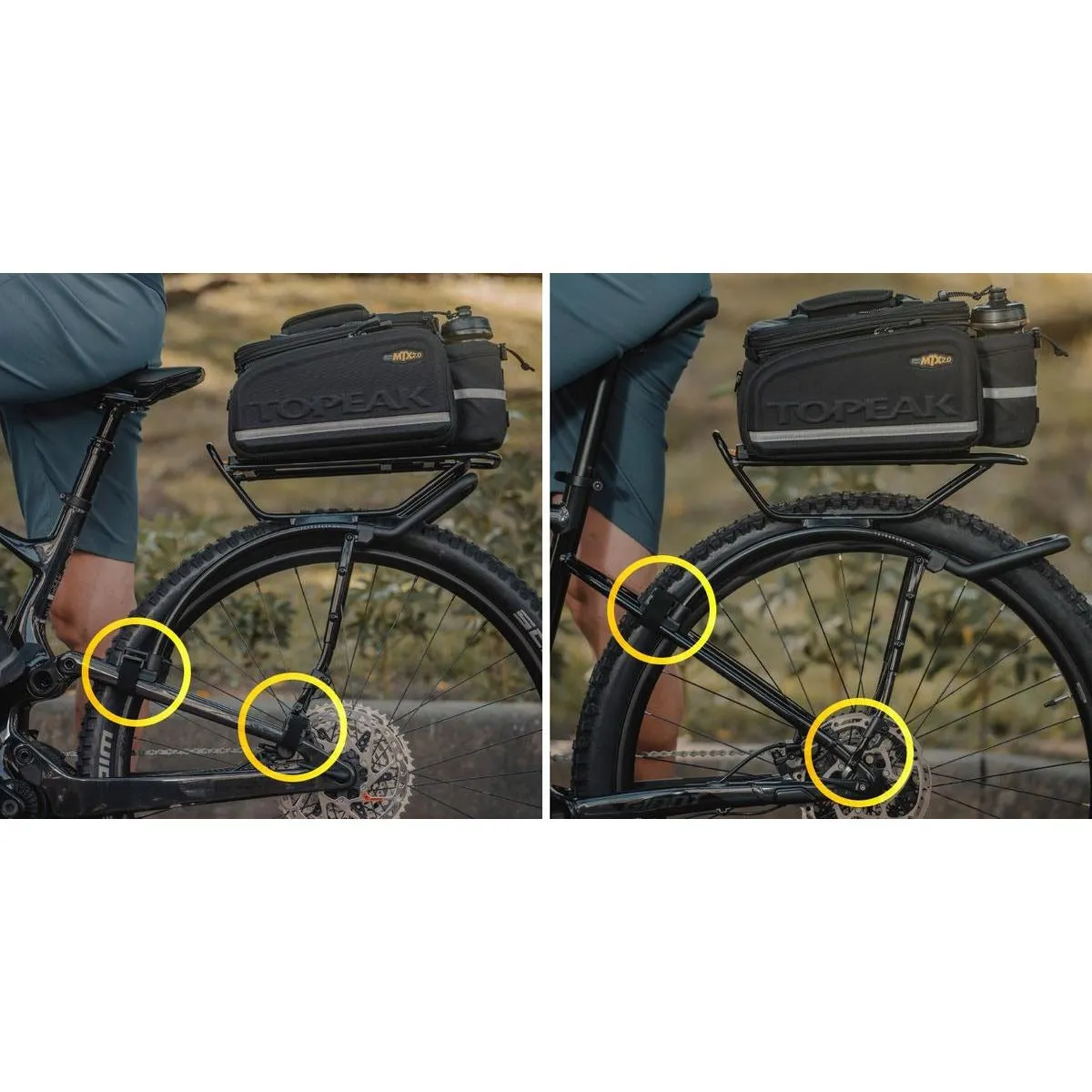

MOUNTING OPTIONS

1. Strap Strap Mount 2. Strap Dropout Eyelet Mount

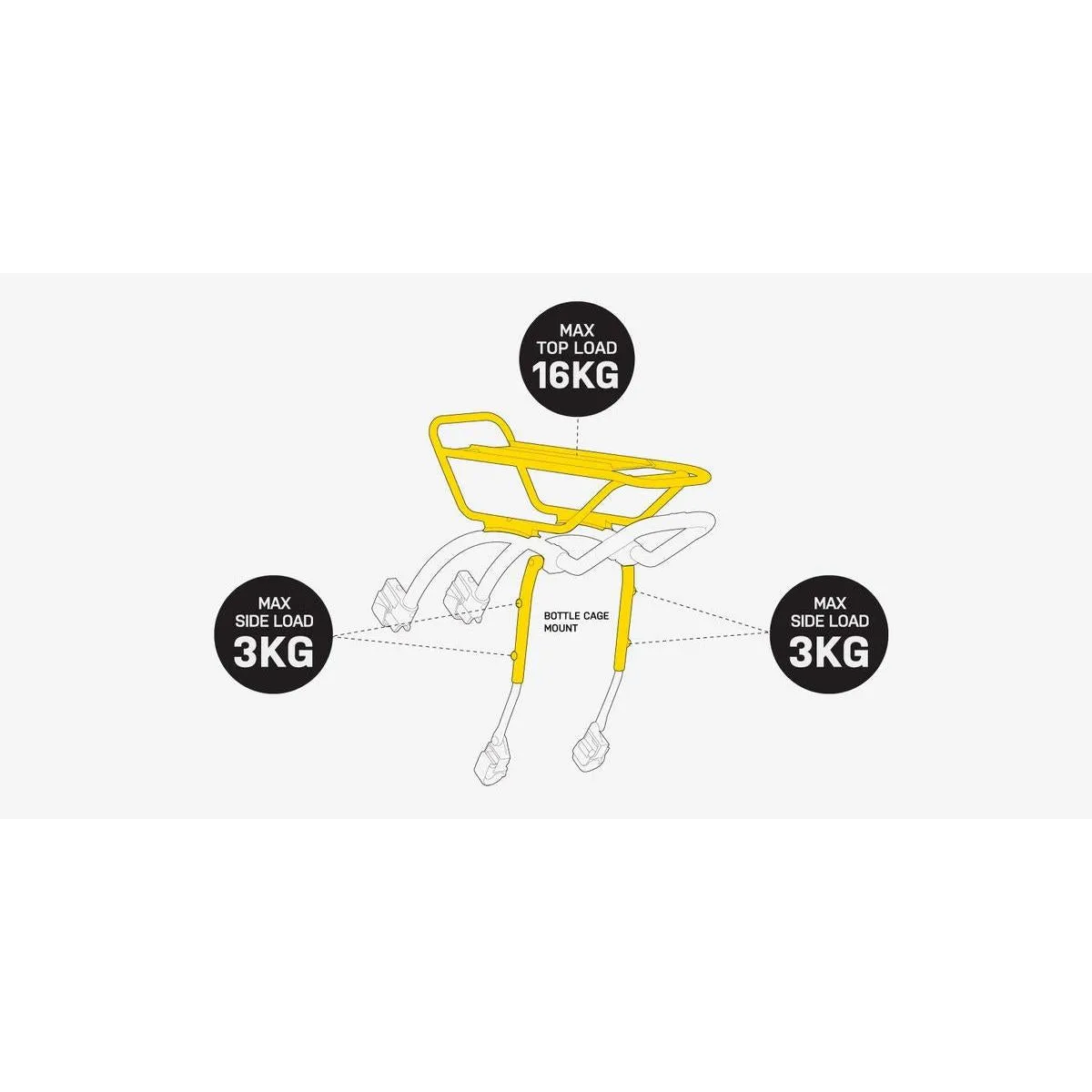

MAX LOAD IN TOTAL 22KG

QUICKTRACK® SYSTEM

Compatible with Topeak QuickTrack® system, KLICKfix® / RackTime® Snapit or Vario system bags.

STRUT SLOT ADJUSTMENTS

Allow the rack top plate to be level independent of the seatstay angle

CLAMP FOR REAR REFLECTOR

 TetraRack has a mounting length of 300mm. Seatstay diameter must be larger than 15mm.
Compatible with seatstays width within 95-125mm. Ensure not to exceed max weight capacity.
The seatstay angle must be over 25 degrees for proper operation.
